Description
- È Intelligente Dispositivo: YES
- Temperatura di Colore (K): 2700/4000/6500
- Generatore di potenza: SWITCH
- Numero modello: 480-4
- Modello del circuito integrato del LED: COB
- Vita Media (ore): 50000
- Certificazione: ce,ROHS,UL
- Tensione: 12V
- Fonte di energia: CC
- Assorbimento di corrente di energia (W/m): 4W/m
- Occasione: Bedroom
- LED Number/M: 480
- Marca del circuito integrato del LED: SANAN
- Impermeabile: No
- Specifiche (branelli chiari/m): 480
- Tipo della striscia: COB
- Marca: OCONA
- Origine: CN (Origine)
- Tipo di articolo: Striscia

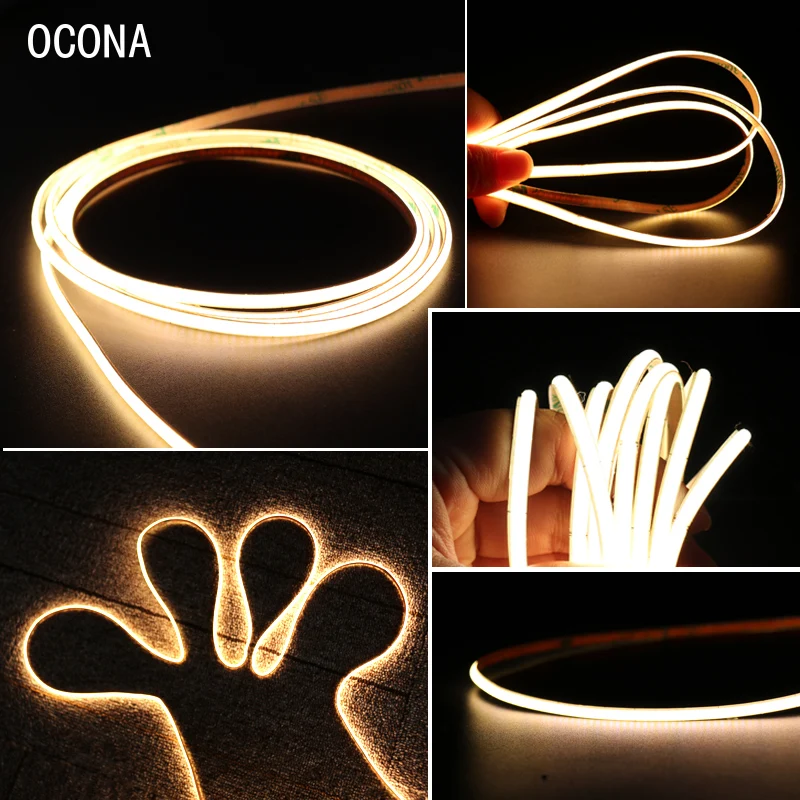

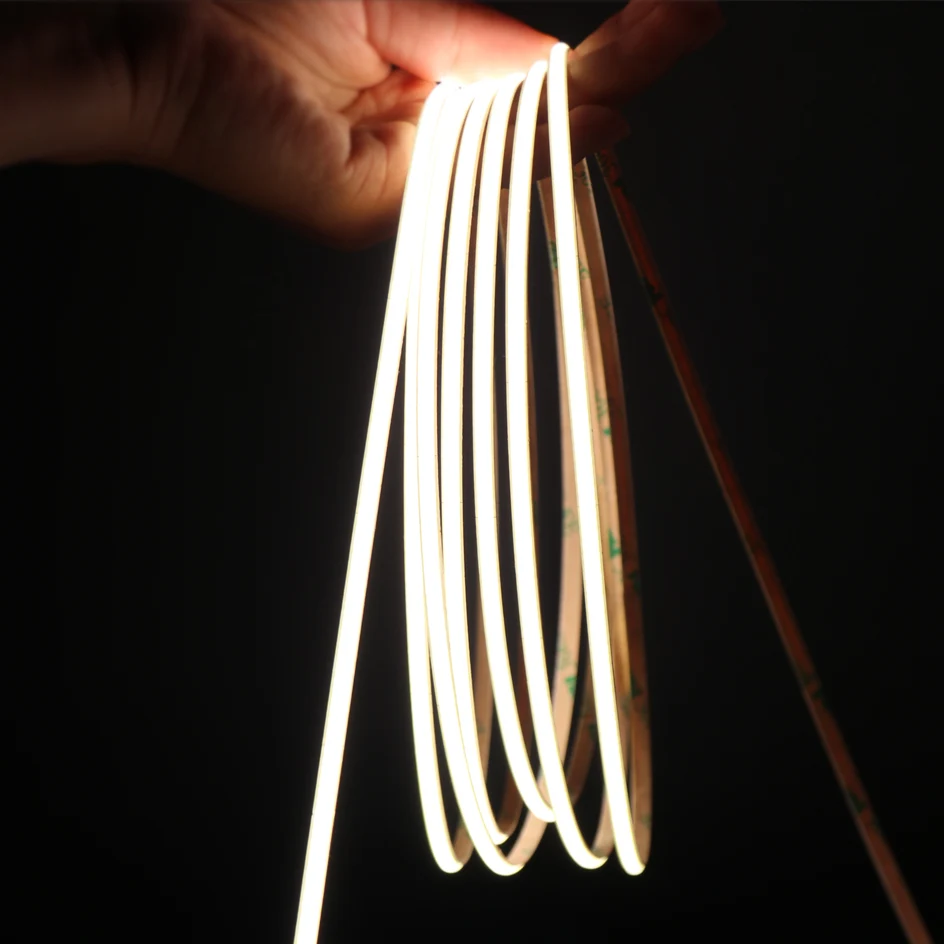

OCONA 4mm Width COB LED Strips Light 480 LEDs/m High Density Flexible Warm/Nature/Cool White Dimmable DC12V/24V

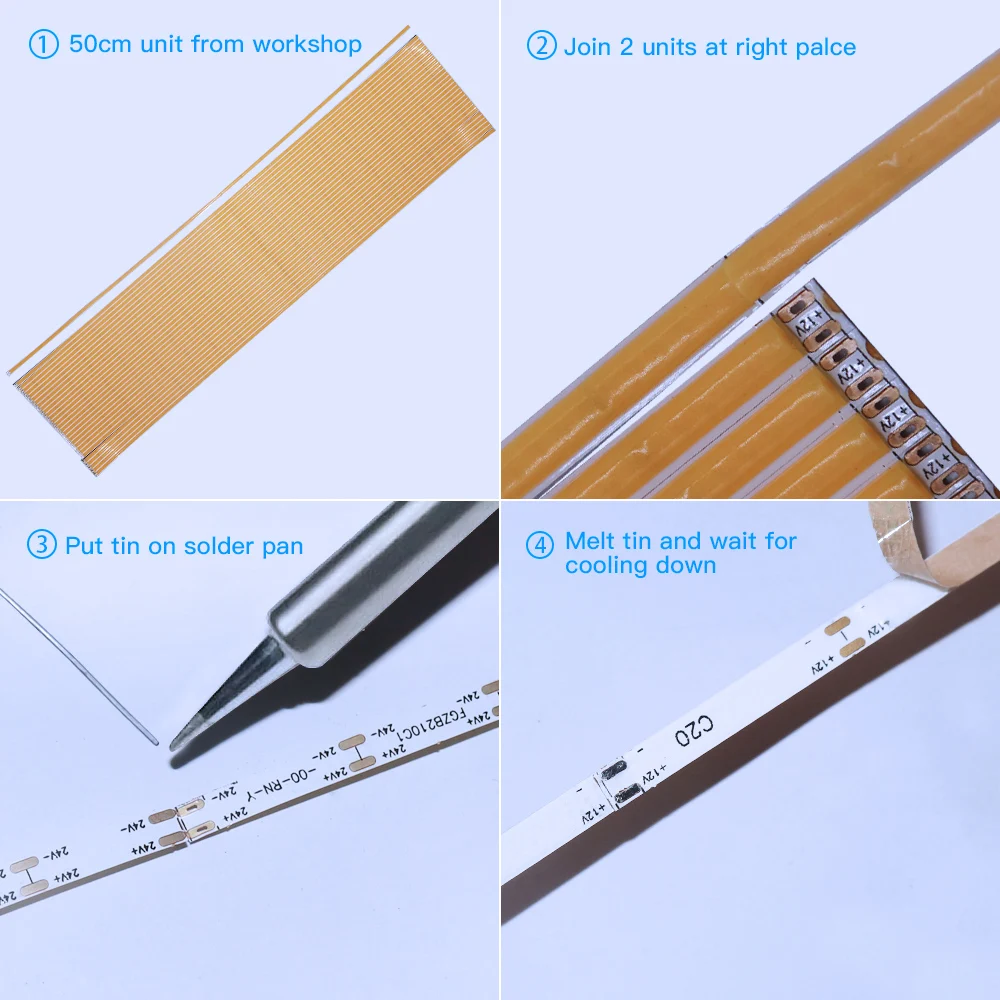

Note: Strip is soldered by 50cm unit. There will be joint for every 50cm. It is because of technical and cost limitation.
Features:
Made with latest LED COB technology, provide high density continuous light without dark area or light spot.
480LEDs per meter, provide uniform light.

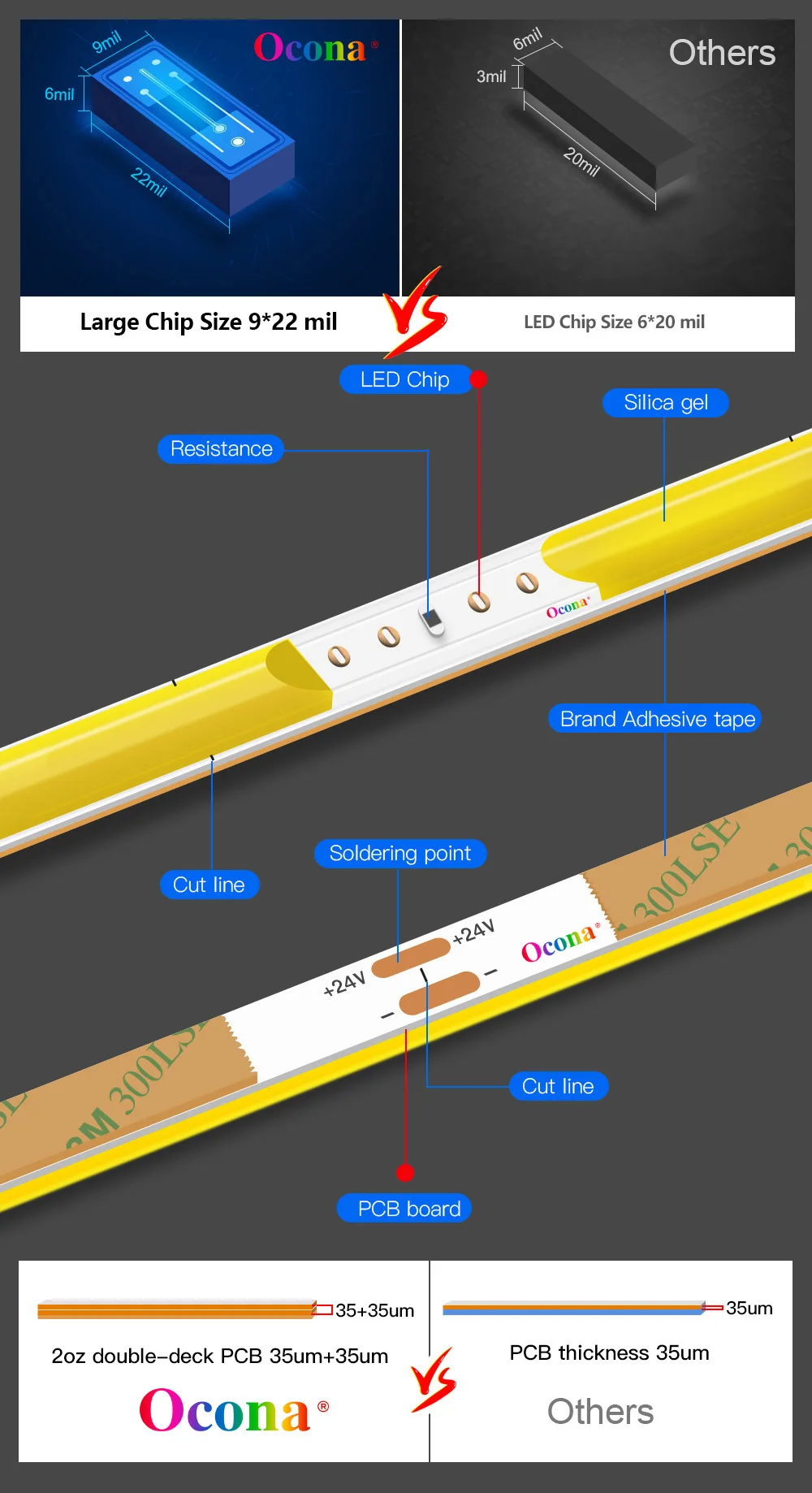

Large chipset, 9*22mil. Brighter Light, Longer life time, Better heat disippation than others
2oz double-deck PCB for maximum heat dispersion
Flexible，bending resistance
Cuttable at cut line. Every 25mm for 12V, every 50mm for 24V
Different Color Temperature choice: Warm White/ Nature White/ Cool White.
2700K 3000K 3500K 4000K 5000K 6500K
Famous brand self-adhesive tape. More durable, easy to mount anywhere.
Can be cut and re-joined
CRI: RA > 90, offers more real color, good for human eyes
Durable Lighting. COB LED strip light service life is more than 50,000 hours
Low Voltage DC 12/24V power, safe to use
CE UL RoHs certificated
Note: COB Strips are joined by 0.5m unit, as the same as 99% on the market
Strip Parameters:
Working Voltage: DC12V /24V optional
2 Pin Wire, Red line(Live), black line(Neutral),do not connect direct to 220V!
Support dimmer to control brightness :Yes with extra controller, available in store
Rated Wattage: 5W/m(value is based on testing of 0.5m unit).
Because of "voltage drop", usually it can not reach full power. The longer the strip is, the more voltage drop it will be.
Strip Width: 4mm, for narrow places
LED quantity: 480 LEDs per Meter
Minimum cut length: DC12V- every 25mm, DC24V-every 50mm
Color Rendering Index: Ra＞90
Operation temperature: -10℃-+60℃
Storage temperature: -10℃-+60℃
Beam angle: 180°
Waterproof Level: IP20, not waterproof.
Lumen: 583LM/m for 3000K; 634LM/m for 4000K; 608LM/m for 6500K
Package includes:
1× 4mm Width COB 480 LED strip lights
Note:
12V/24V Power supply and Dimmer are not included, available in store
